The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

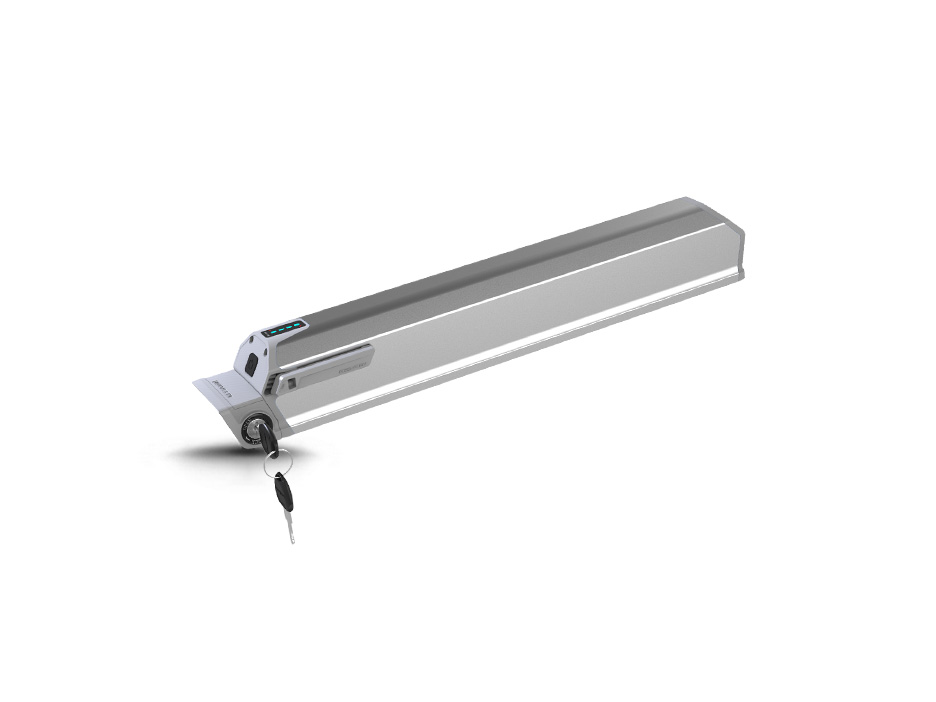

Kinstar Li-ion 36V 10Ah 360Wh DORADO Mini Tube Battery with Samsung 2600mAh Cells for eBike

Kinstar Li-ion 36V 10Ah 360Wh DORADO Mini Tube Battery with Samsung 2600mAh Cells for eBike

  • Item No. LI-DM360100
  • Nominal capacity 10.4Ah
  • Nominal voltage 36V
  • Cell type Lithium-ion Cylindrical
  • Cell model Samsung ICR18650-26H M
  • Color Silver or Black
  • ApplicationsUrban eBikes; Commuter Bikers
ItemsSpecificationsNotes
Nominal capacity10.4Ah0.2C discharge at 25°C
Nominal voltage36VAverage operating voltage
Nominal energy374WhCapacity(Ah) × Voltage(V)
Charging voltage42 ± 0.05V
Charging current2A 丨3AStandard丨Rapid
Charging time6.0 hours 丨4.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current5A 丨12AStandard丨Maximum
Peak discharge current40AWithin a short time
Discharge end voltage27.5VDischarge cut-off voltage
Dimensions505mm丨60mm丨61mmLength丨Width丨Height
Typical weight3.25 KG114.60 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
