The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

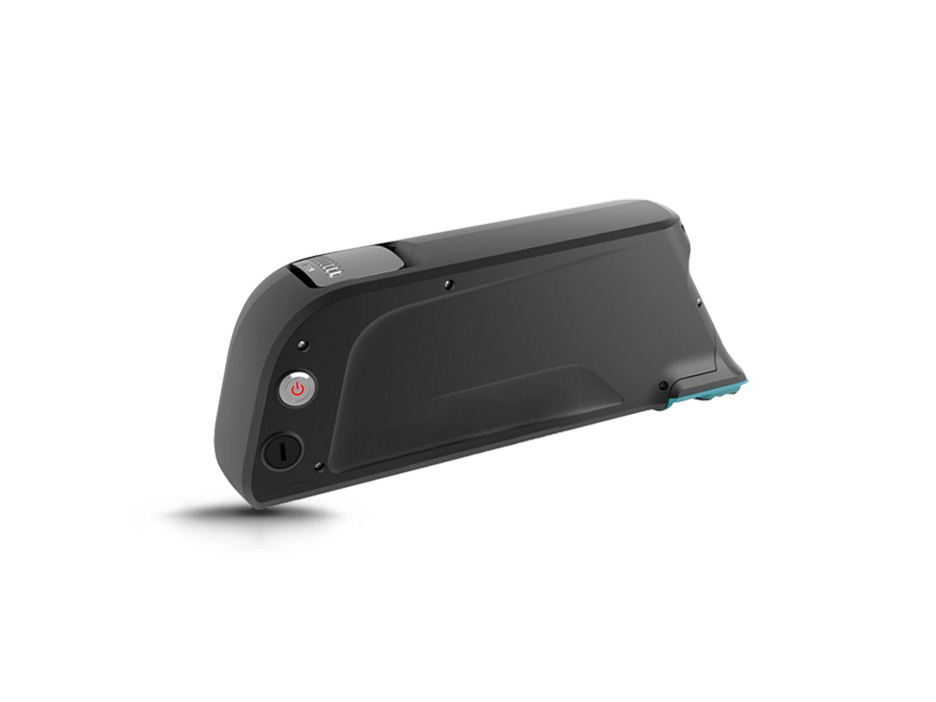

Kinstar Qingtian(ATLAS) Li-ion 36V 14.5Ah 522Wh Frame Battery for eBikes &  Pedelecs with 5V USB

Kinstar Qingtian(ATLAS) Li-ion 36V 14.5Ah 522Wh Frame Battery for eBikes & Pedelecs with 5V USB

  • Item No. LI-QT360145
  • Nominal capacity 14.5Ah
  • Nominal voltage 36V
  • Cell type Lithium-ion Cylindrical
  • Cell model Panasonic NCR18650PF
  • Color Black or White
  • Applications Mountain E-Bikes; Urban E-Bikes; Commuter Bikers
ItemsSpecificationsNotes
Nominal capacity14.5AhReference only
Nominal voltage36VAverage operating voltage
Nominal energy522WhCapacity(Ah) × Voltage(V)
Charging voltage42.00 ± 0.05V
Charging current3A 丨4AStandard丨Rapid
Charging time6.0 hours 丨4.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current7A 丨25AStandard丨Maximum
Peak discharge current60AWithin a short time
Discharge end voltage27.5VDischarge cut-off voltage
Dimensions360mm丨90mm丨130mmLength丨Width丨Height
Typical weight3.80 KG134 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
