Excellent battery efficiency

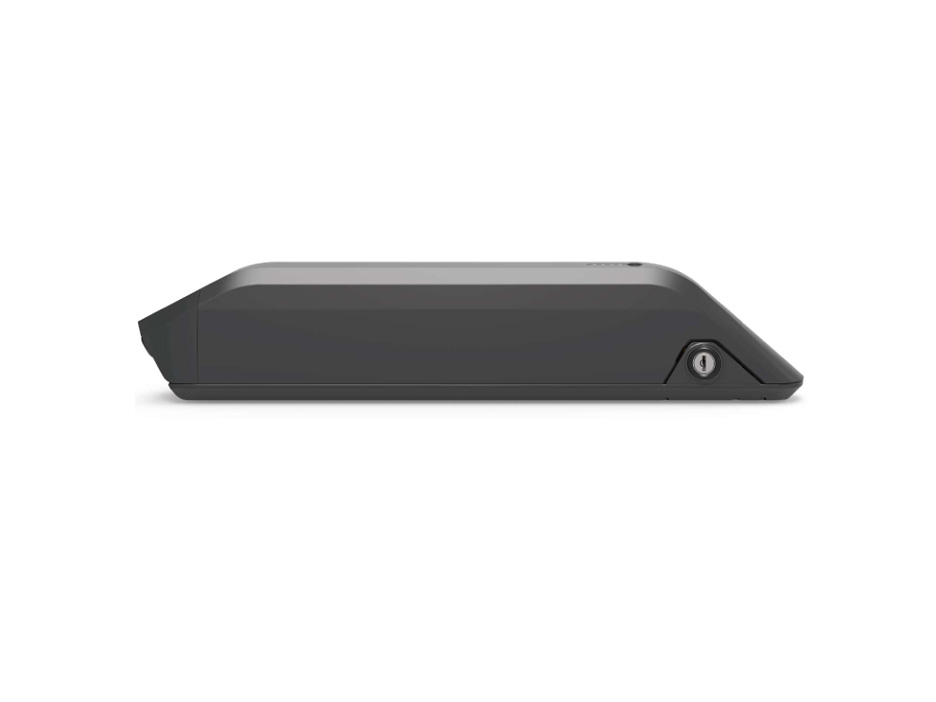

KinStar 36V 20Ah Lithium ion Battery for e Bicycle Kirin DK-7-B provide staying power, demonstrably have high energy density with small size and low weight for maximum riding pleasure.
Fast charge and no memory effect
KinStar 36V 20Ah Lithium ion Battery for e Bicycle Kirin DK-7-B can be full charged in about 6.0 hours, durable energy storage without memory effect and extremely low self-discharge.
Long service life
The Battery Management System(BMS) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
Environment friendly and easy handling
Kinstar eBike frame batteries are clean energy provider with staying power and zero emission. It is simple to handle them without any danger, if read instruction before using the batteries.
| Items | Specifications | Notes |
| Nominal capacity | 20Ah | Reference only |
| Nominal voltage | 36V | Average operating voltage |
| Nominal energy | 720Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 42.00 ± 0.05V | |
| Charging current | 3A 丨4A | Standard丨Rapid |
| Charging time | 8.0 hours 丨6.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 10A 丨20A | Standard丨Maximum |
| Peak discharge current | 40A | Within a short time |
| Discharge end voltage | 27.5V | Discharge cut-off voltage |
| Dimensions | 526mm丨79mm丨104mm | Length丨Width丨Height |
| Typical weight | 4.0 KG | 141 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
