The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

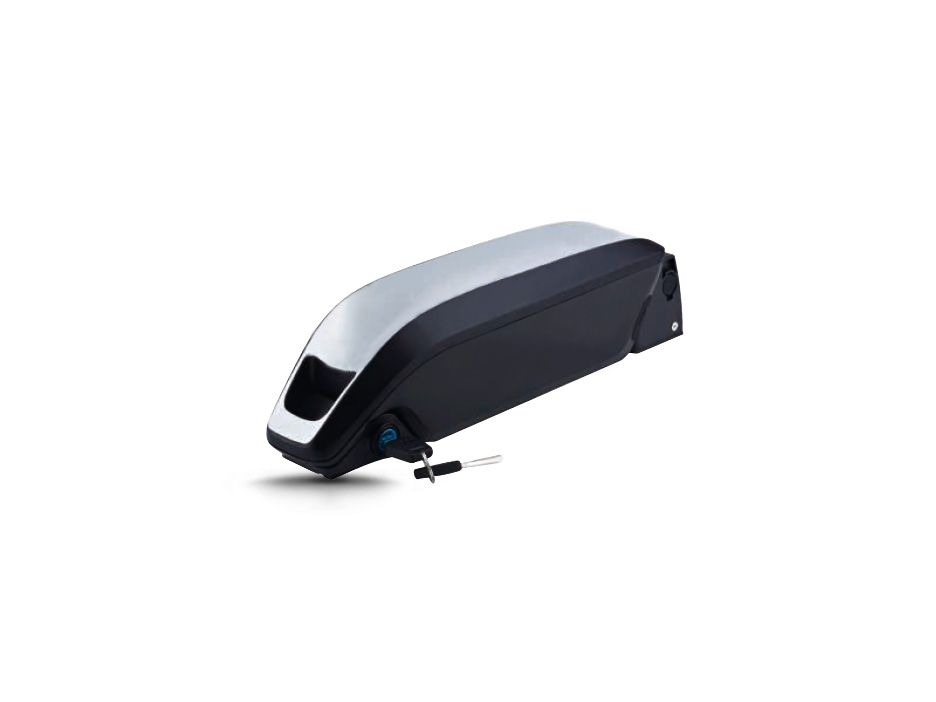

Kinstar XHXH Li-ion 36V 12.8Ah 460Wh Frame Battery with Samsung 3200mAh Cells & 5V USB

Kinstar XHXH Li-ion 36V 12.8Ah 460Wh Frame Battery with Samsung 3200mAh Cells & 5V USB

  • Item No. LI-NH360128
  • Nominal capacity 12.8Ah
  • Nominal voltage 36V
  • Cell type Lithium-ion Cylindrical
  • Cell model Samsung INR18650-32E
  • Color Black
  • Applications Mountain E-Bikes; Urban E-Bikes; Commuter Bikers
ItemsSpecificationsNotes
Nominal capacity12.8Ah0.2C discharge at 25°C
Nominal voltage36VAverage operating voltage
Nominal energy460WhCapacity(Ah) × Voltage(V)
Charging voltage42.00 ± 0.05V
Charging current3A 丨4AStandard丨Rapid
Charging time5.0 hours 丨4.0 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current6.5A 丨20AStandard丨Maximum
Peak discharge current50AWithin a short time
Discharge end voltage27.5VDischarge cut-off voltage
Dimensions412mm丨92mm93mmLength丨Width丨Height
Typical weight2.65 KG93.50 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
