The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

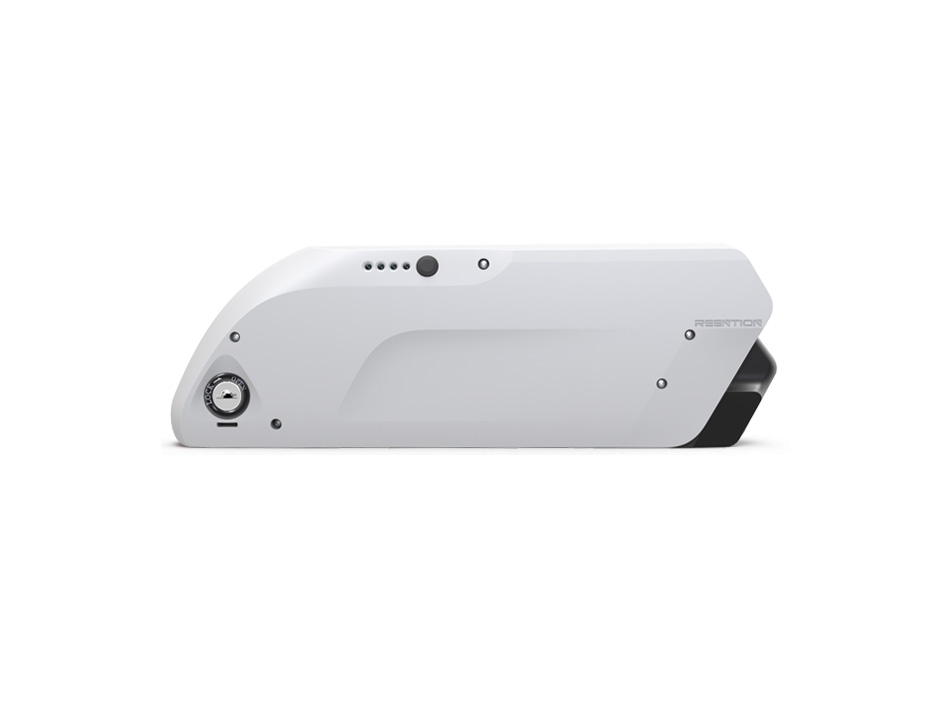

Kinstar TigerShark DS-5 Li-ion 36V 16Ah 576Wh Frame Battery with Samsung 32E Cells & 5V USB

Kinstar TigerShark DS-5 Li-ion 36V 16Ah 576Wh Frame Battery with Samsung 32E Cells & 5V USB

  • Item No. LI-TS360160
  • Nominal capacity 16Ah
  • Nominal voltage 36V
  • Cell type Lithium-ion Cylindrical
  • Cell model Samsung INR18650-32E
  • Color Black or White
  • Applications Mountain E-Bikes; Urban E-Bikes; Commuter Bikers
ItemsSpecificationsNotes
Nominal capacity16Ah0.2C discharge at 25°C
Nominal voltage36VAverage operating voltage
Nominal energy576WhCapacity(Ah) × Voltage(V)
Charging voltage42.00 ± 0.05V
Charging current3A 丨4AStandard丨Rapid
Charging time6.0 hours 丨5.0 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current8A 丨25AStandard丨Maximum
Peak discharge current60AWithin a short time
Discharge end voltage27.5VDischarge cut-off voltage
Dimensions342mm丨78mm114mmLength丨Width丨Height
Typical weight3.15 KG111.10 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
