The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

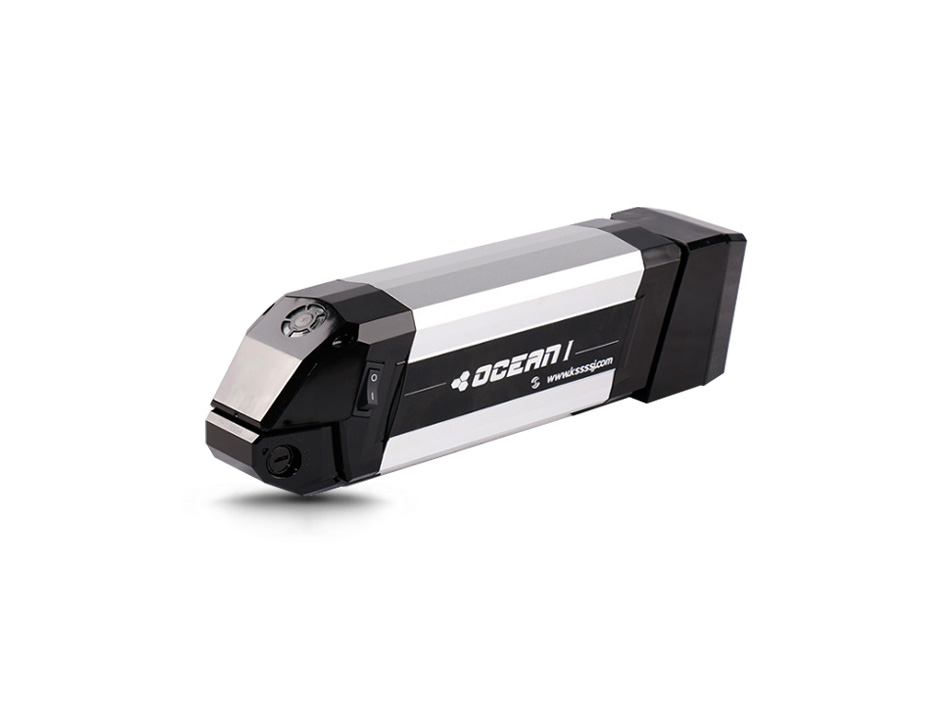

Kinstar Li-ion 48V 10Ah 480Wh Ocean I Frame Battery for eBike & Pedelec with Sanyo GA Cells

Kinstar Li-ion 48V 10Ah 480Wh Ocean I Frame Battery for eBike & Pedelec with Sanyo GA Cells

  • Item No. LI-OCI480100
  • Nominal capacity 10Ah
  • Nominal voltage 46.8V
  • Cell type Lithium-ion Cylindrical
  • Cell model Sanyo NCR18650GA
  • Color Silver or Black
  • Applications Mountain E-Bikes; Urban E-Bikes; Commuter Bikers
ItemsSpecificationsNotes
Nominal capacity10Ah0.2C discharge at 25°C
Nominal voltage46.8VAverage operating voltage
Nominal energy468WhCapacity(Ah) × Voltage(V)
Charging voltage54.60 ± 0.05V
Charging current2A 丨3AStandard丨Rapid
Charging time6.0 hours 丨4.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current5A 丨20AStandard丨Maximum
Peak discharge current50AWithin a short time
Discharge end voltage36VDischarge cut-off voltage
Dimensions364mm丨84mm114mmLength丨Width丨Height
Typical weight3.65 KG93.50 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
