The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

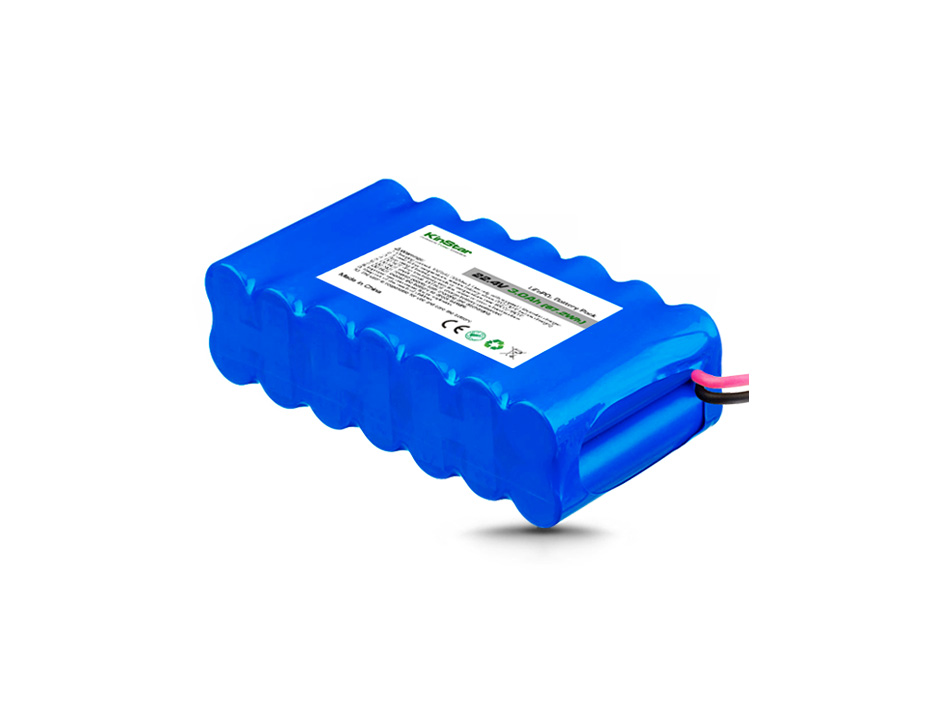

Kinstar LiFePO4 18650 22.4V 3000mAh Battery 7S2P Rechargeable Battery with PCB & Bare Leads

Kinstar LiFePO4 18650 22.4V 3000mAh Battery 7S2P Rechargeable Battery with PCB & Bare Leads

  • Item No. LF1807S3000E
  • Nominal capacity 3000mAh
  • Nominal voltage 22.4V
  • Cell type LiFePO4 Cylindrical
  • Cell model Kinstar IFR18650ME
  • Connector Bare Leads
  • ApplicationsAGV, Medical Devices Portable Power Tools
ItemsSpecificationsNotes
Nominal capacity3000mAh0.6A discharge at 25°C
Nominal voltage22.4VAverage operating voltage
Nominal energy67.2WhCapacity(Ah) × Voltage(V)
Charging voltage25.20 ± 0.05V
Charging current750mA 丨1500mAStandard丨Rapid
Charging time5.0 hours 丨3.0 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current600mA 丨3000mAStandard丨Maximum
Peak discharge current8000mAWithin a short time
Discharge end voltage14VDischarge cut-off voltage
Dimensions130mm39mm丨78mmLength丨Width丨Height
Typical weight672g23.70 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
