Excellent battery efficiency

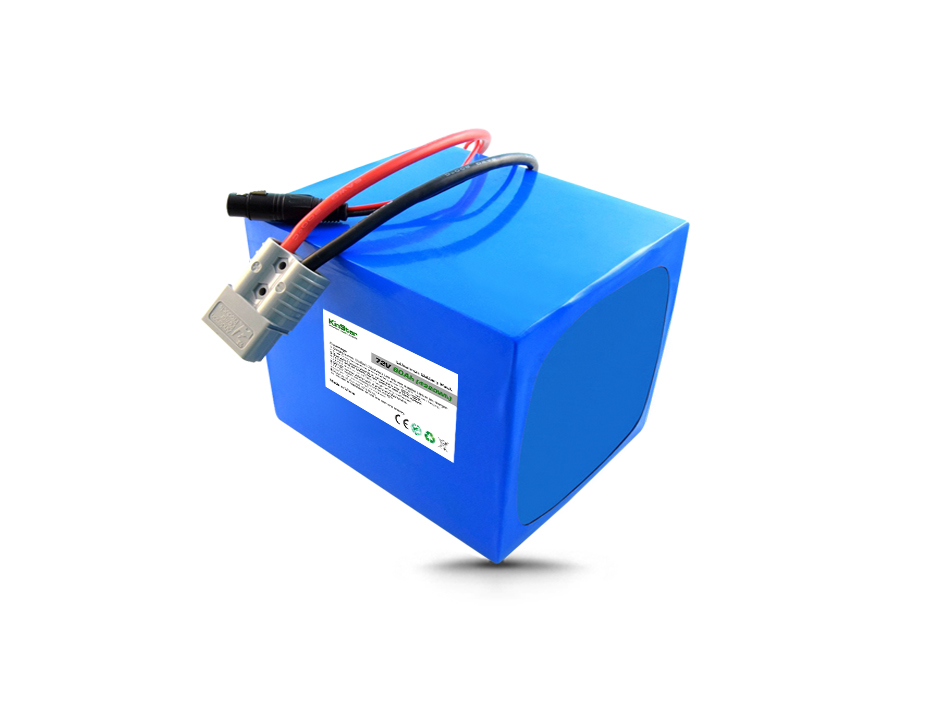

For maximum lasting time, Kinstar 72V 60Ah polymer rechargeable battery demonstrably have maximum energy density with small size and low weight - guaranteeing maximum output power.
Fast charge and no memory effect
Kinstar LiPo 72V 60Ah battery can be full charged in about 5 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Protection Circuit Board(PCB) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
Environment friendly and easy handling
Lithium-ion polymer batteries are clean energy provider with staying power and zero emission. It is simple to handle them without any danger, if read instruction before using the batteries.
| Items | Specifications | Notes |
| Nominal capacity | 60Ah | 12A discharge at 25°C |
| Nominal voltage | 72V | Average operating voltage |
| Nominal energy | 4320Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 84.00 ± 0.05V | |
| Charging current | 12A 丨20A | Standard丨Rapid |
| Charging time | 7.0 hours 丨5.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 12A 丨60A | Standard丨Maximum |
| Peak discharge current | 120A | Within a short time |
| Discharge end voltage | 55V | Discharge cut-off voltage |
| Dimensions | 330mm丨260mm丨160mm | Length丨Width丨Height |
| Typical weight | 21kg | 740.80 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
