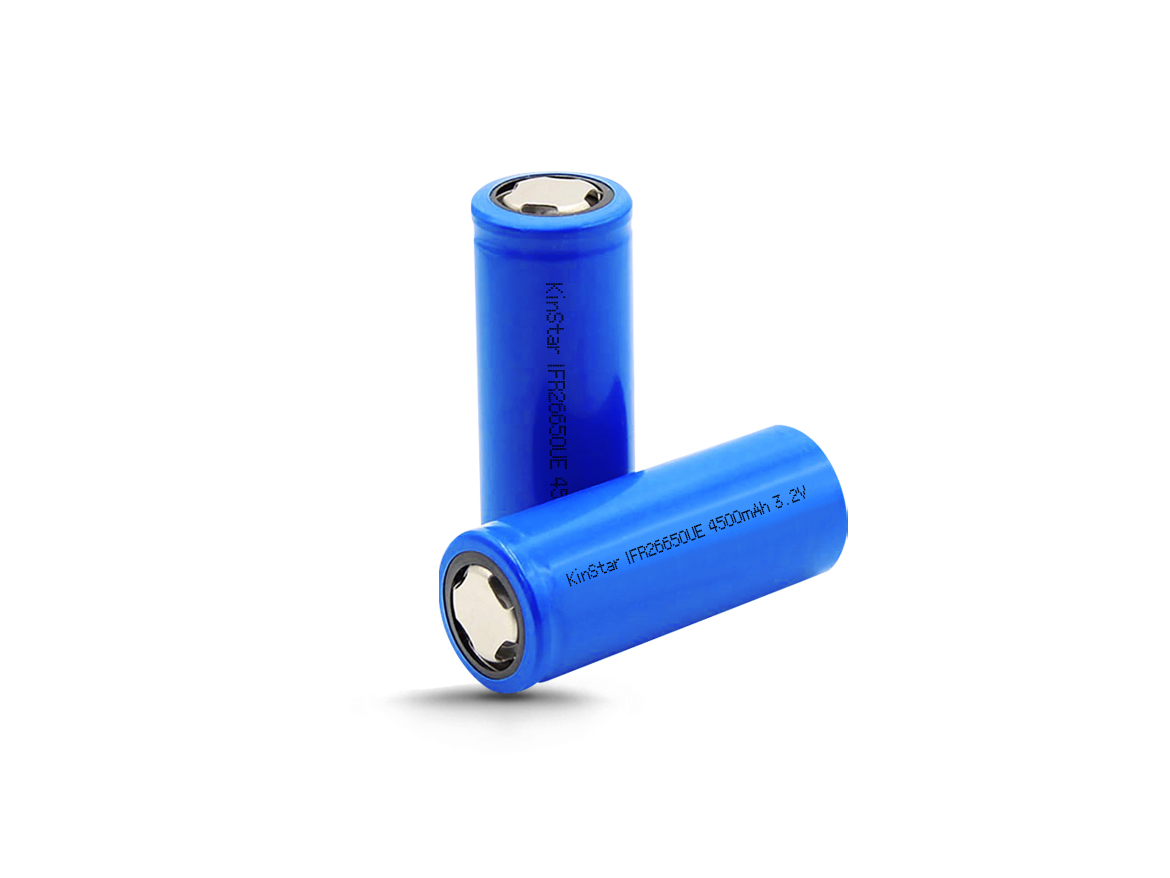

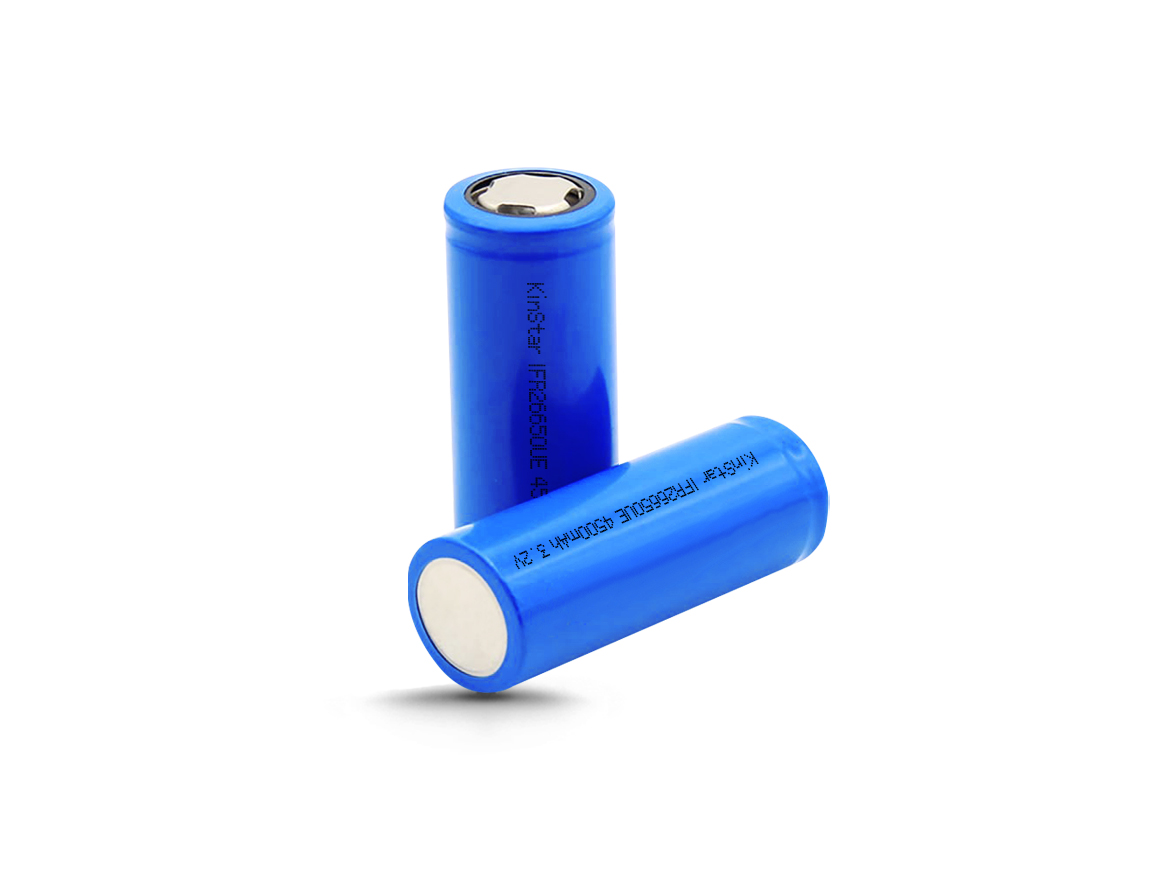

High Capacity LiFePO4 Battery 26650 3.2V 4500mAh 13.5A

Our battery cells and custom battery solutions are for B2B and intended for mass production. Send us a message and tell us your battery requirements.

High Capacity LiFePO4 Battery 26650 3.2V 4500mAh 13.5A

High Capacity LiFePO4 Battery 26650 3.2V 4500mAh 13.5A

  • Cell model IFR26650UE
  • Typical capacity 4500mAh
  • Minimum capacity 4400mAh
  • Nominal voltage 3.2V
  • Nominal energy 14.4Wh
  • Max. discharge curent 13.5A
  • Dimensions Φ26.2mm丨H 65.2mm
  • Service life ≥2000 cycles
ItemsSpecificationsNotes
Charge voltage3.2V
Standard charging current900mA
Standard charging time6.0Hours
Rapid charging current2250mA
Charging methodCC 丨CVConstant current丨constant voltage
Standard disharging current900mA
Discharge end voltage2.0V
Internal resistance≤20mΩAC impedance 1 kHz
Weight≤85g
Charge temperature0~60°C
Discharge temperature-20~ 60°C
Less than 3 month storage-20 ~ 40°C
Less than 1 year storage-20 ~ 20°C
