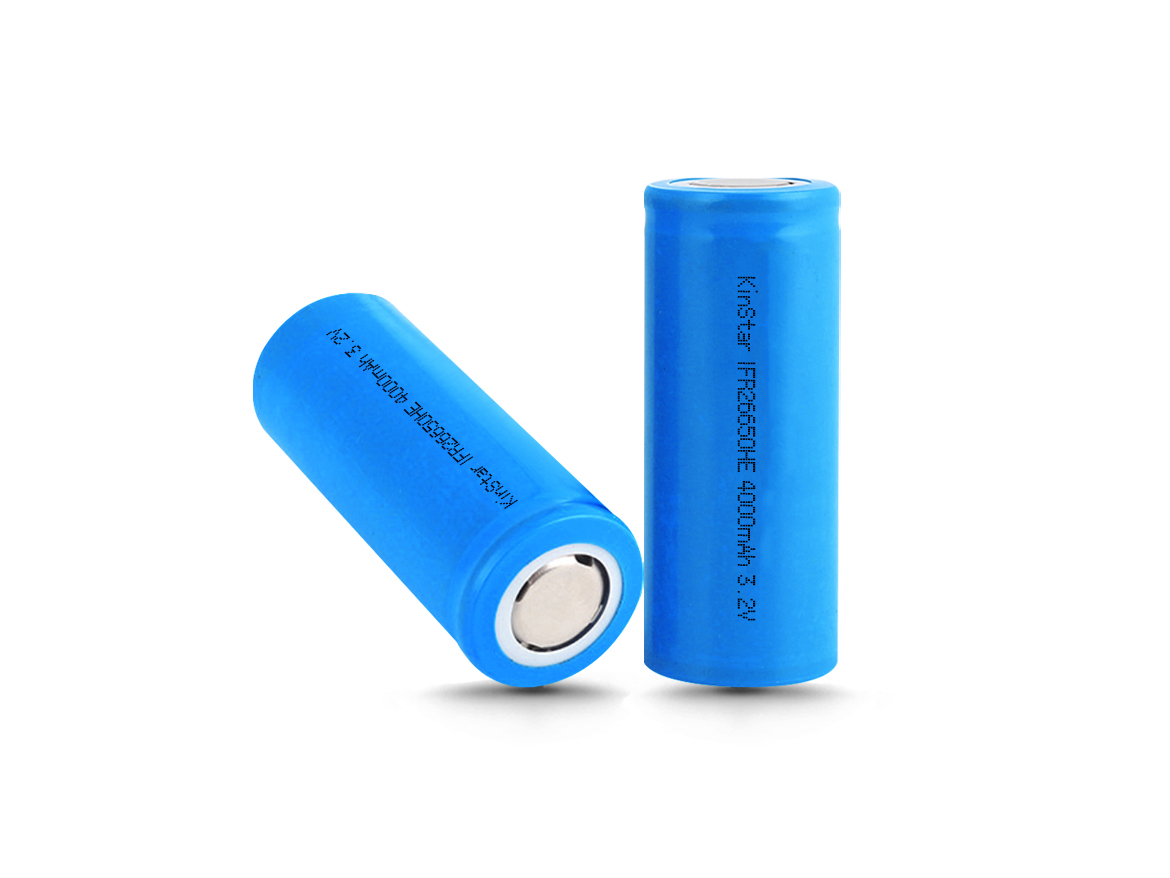

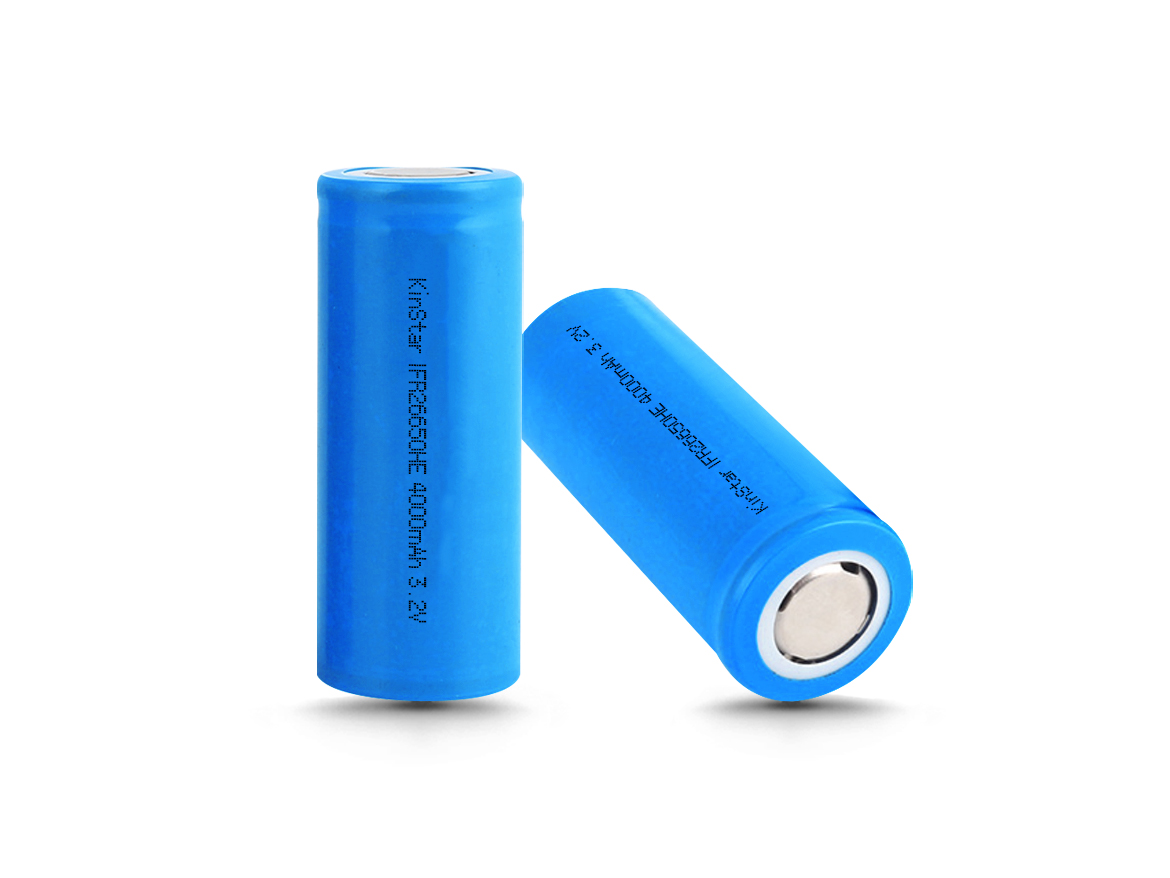

3.2V 26650 4000mAh 11.4A LiFePO4 Battery丨KinStar

3.2V 26650 4000mAh 11.4A LiFePO4 Battery丨KinStar

  • Cell model IFR26650HE
  • Typical capacity 4000mAh
  • Minimum capacity 3900mAh
  • Nominal voltage 3.2V
  • Nominal energy 12.8Wh
  • Max. discharge curent 12A
  • Dimensions Φ26.2mm丨H 65.2mm
  • Service life ≥2000 cycles
ItemsSpecificationsNotes
Charge voltage3.2V
Standard charging current800mA
Standard charging time6.0Hours
Rapid charging current2000mA
Charging methodCC 丨CVConstant current丨constant voltage
Standard disharging current800mA
Discharge end voltage2.0V
Internal resistance≤20mΩAC impedance 1 kHz
Weight≤83g
Charge temperature0~60°C
Discharge temperature-20~ 60°C
Less than 3 month storage-20 ~ 40°C
Less than 1 year storage-20 ~ 20°C
