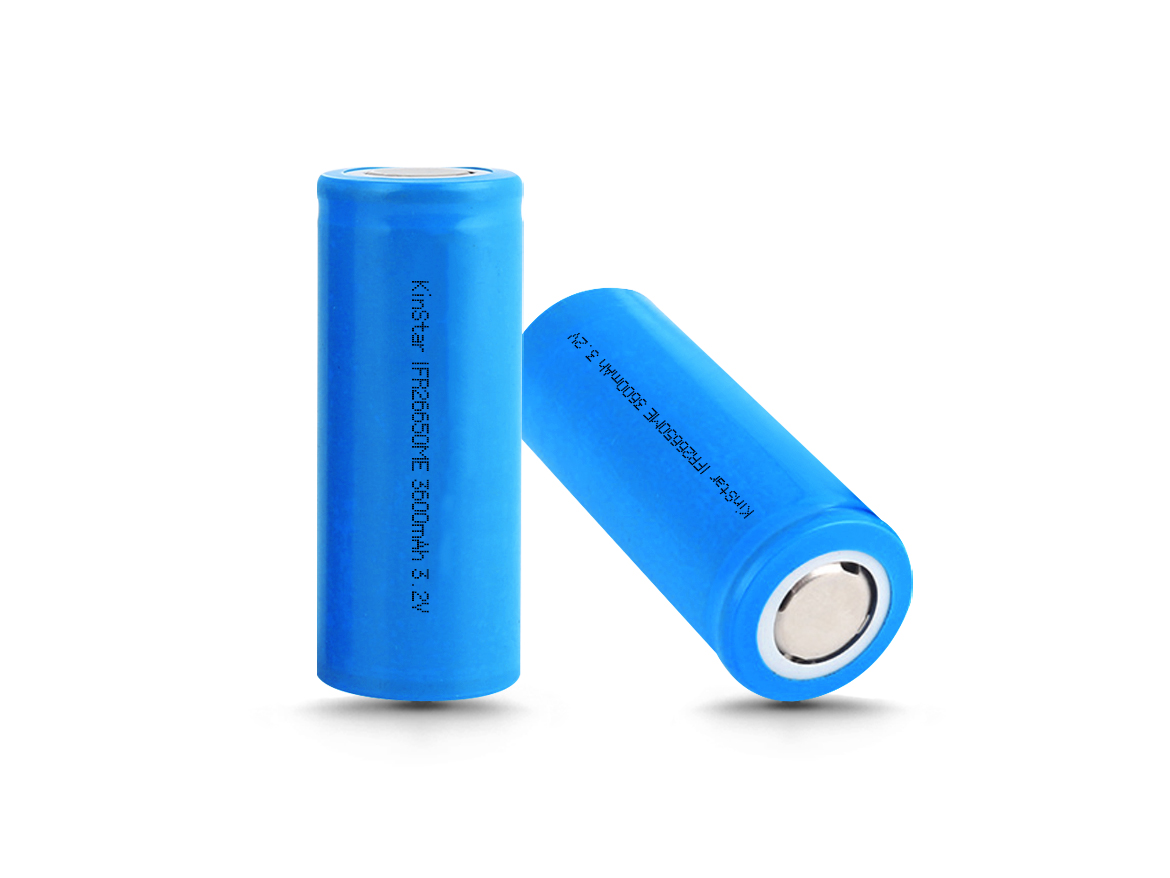

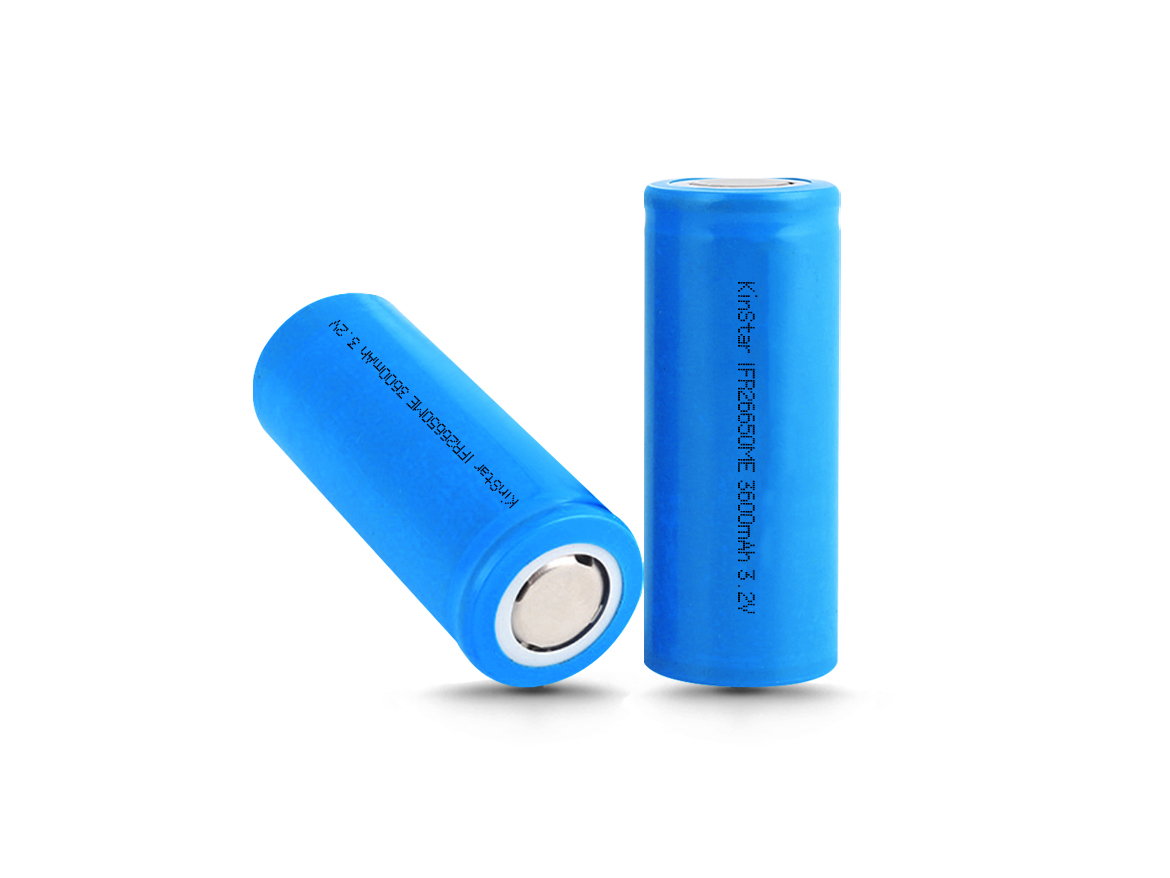

26650 LiFePO4 Battery Cell IFR26650 3600mAh 3.2V 10A

Our battery cells and custom battery solutions are for B2B and intended for mass production. Send us a message and tell us your battery requirements.

26650 LiFePO4 Battery Cell IFR26650 3600mAh 3.2V 10A

26650 LiFePO4 Battery Cell IFR26650 3600mAh 3.2V 10A

  • Cell model IFR26650ME
  • Typical capacity 3600mAh
  • Minimum capacity 3550mAh
  • Nominal voltage 3.2V
  • Nominal energy 11.52Wh
  • Max. discharge curent 10.8A
  • Dimensions Φ26.2mm丨H 65.2mm
  • Service life ≥2000 cycles
ItemsSpecificationsNotes
Charge voltage3.2V
Standard charging current720mA
Standard charging time6.0Hours
Rapid charging current1800mA
Charging methodCC 丨CVConstant current丨constant voltage
Standard disharging current1800mA
Discharge end voltage2.0V
Internal resistance≤20mΩAC impedance 1 kHz
Weight≤83g
Charge temperature0~60°C
Discharge temperature-20~ 60°C
Less than 3 month storage-20 ~ 40°C
Less than 1 year storage-20 ~ 20°C
