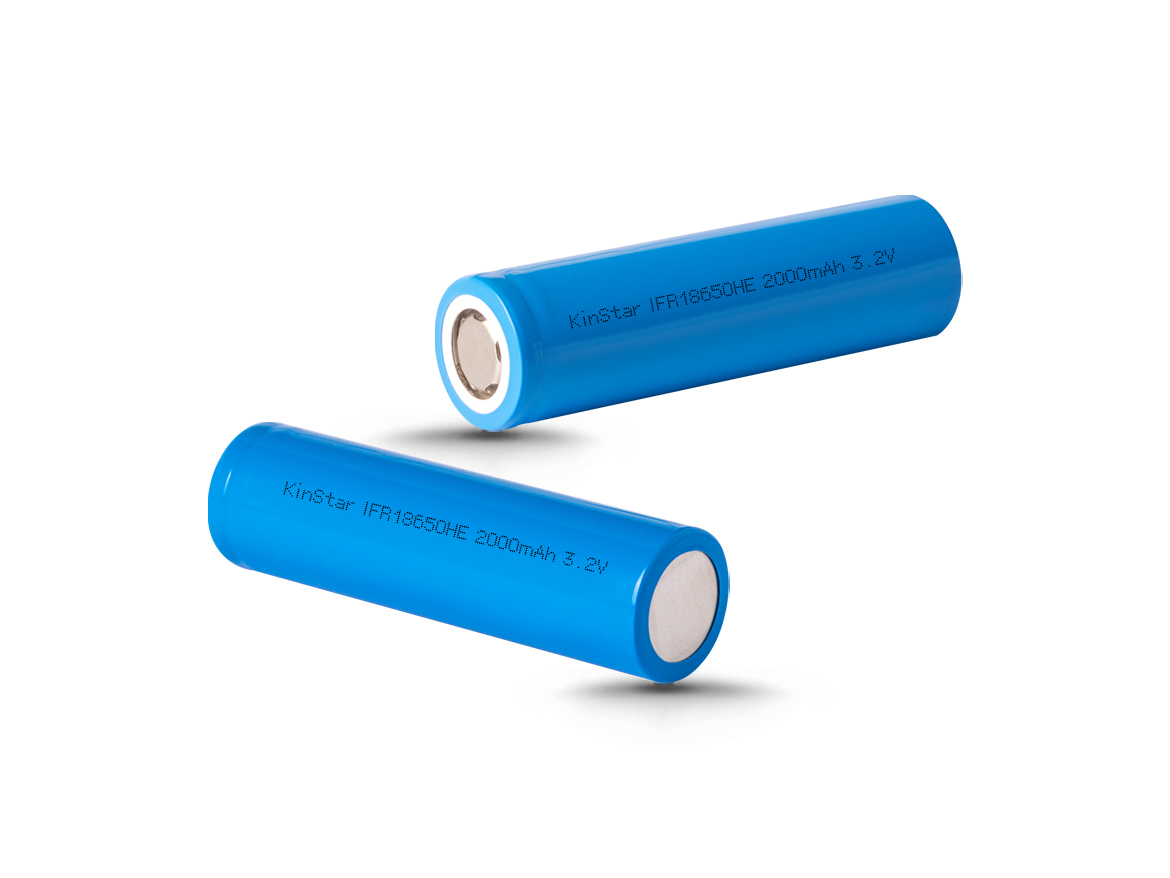

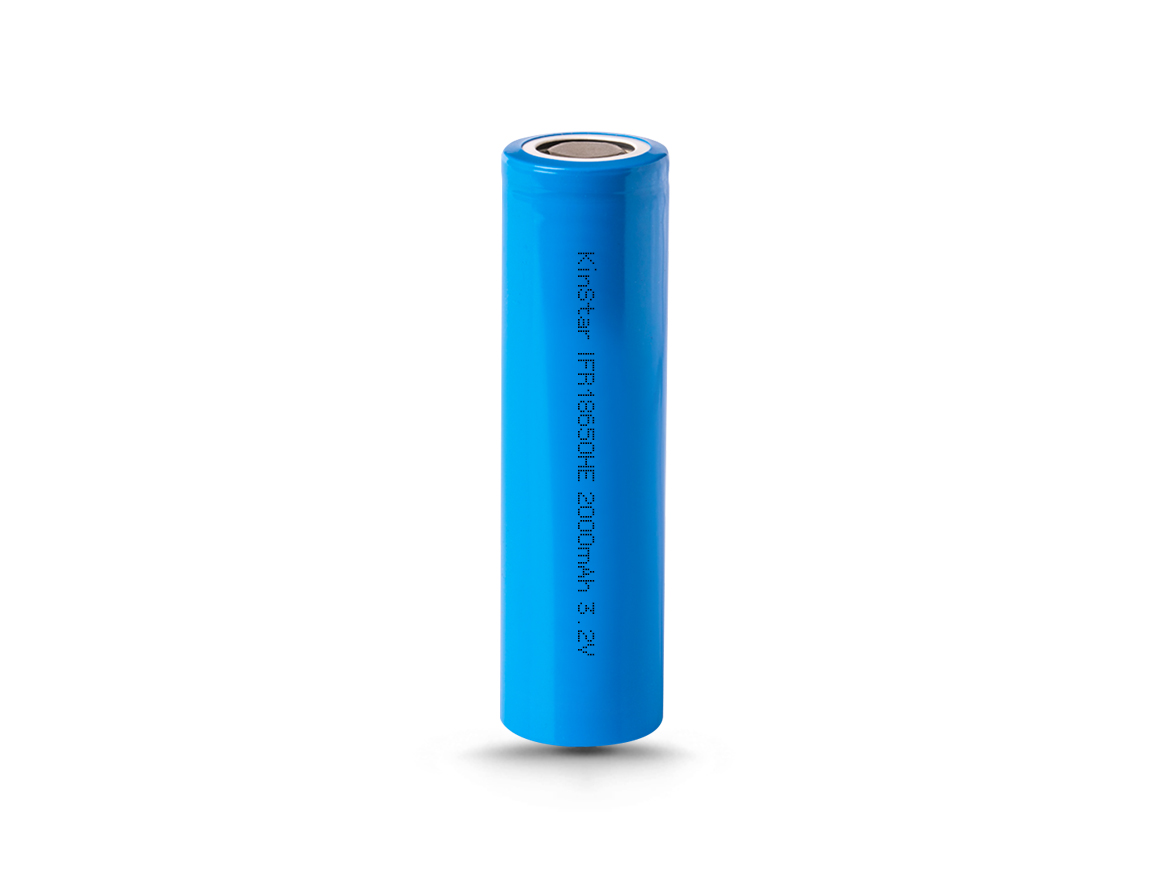

IFR18650 Battery LiFePO4 3.2V 2000mAh Rechargeable

Our battery cells and custom battery solutions are for B2B and intended for mass production. Send us a message and tell us your battery requirements.

IFR18650 Battery LiFePO4 3.2V 2000mAh Rechargeable

IFR18650 Battery LiFePO4 3.2V 2000mAh Rechargeable

  • Cell model IFR18650HE
  • Typical capacity 2000mAh
  • Minimum capacity 1950mAh
  • Nominal voltage 3.2V
  • Nominal energy 6.4Wh
  • Max. discharge curent 6000mA
  • Dimensions Φ18.2mm丨H 65.2mm
  • Service life ≥2000 cycles
ItemsSpecificationsNotes
Charge voltage3.2V
Standard charging current400mA
Standard charging time6.0Hours
Rapid charging current1000mA
Charging methodCC 丨CVConstant current丨constant voltage
Standard disharging current400mA
Discharge end voltage2.0V
Internal resistance≤20mΩAC impedance 1 kHz
Weight≤47g
Charge temperature0~60°C
Discharge temperature-20~ 60°C
Less than 3 month storage-20 ~ 40°C
Less than 1 year storage-20 ~ 20°C
