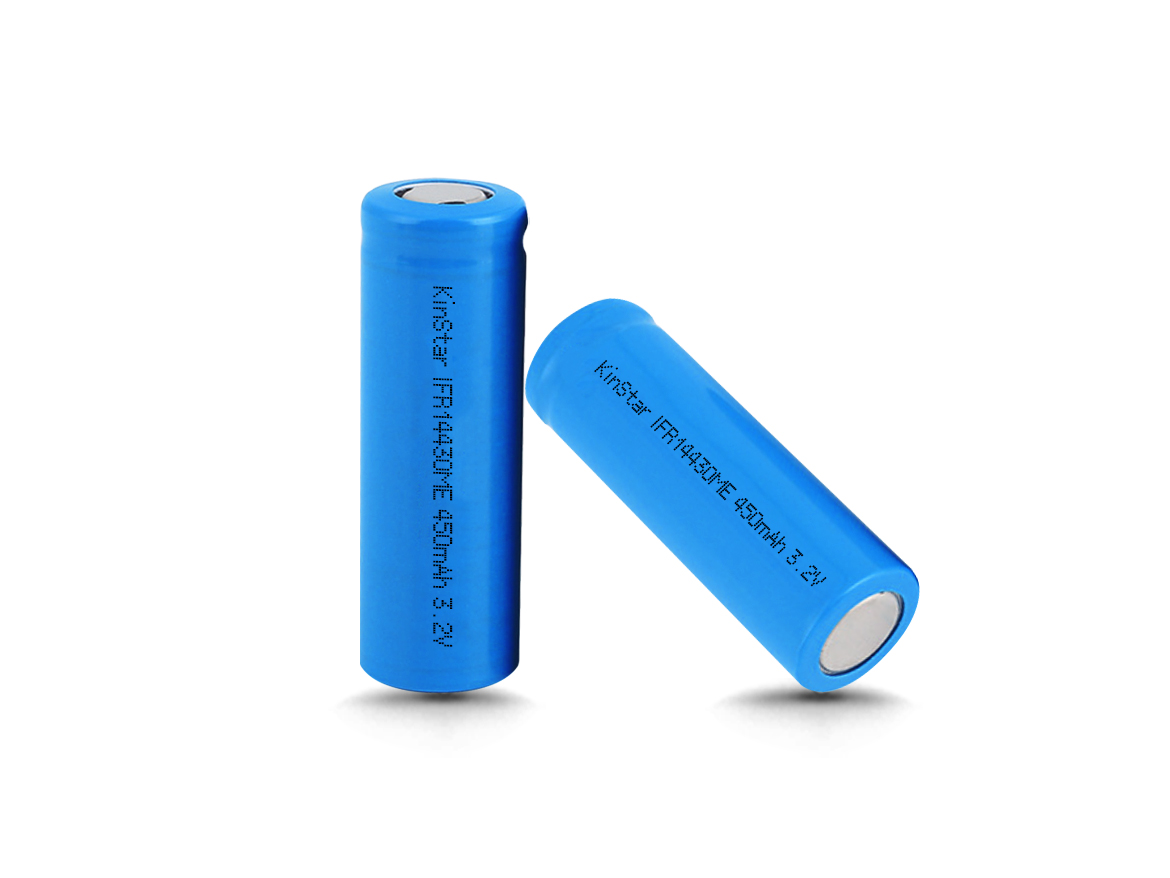

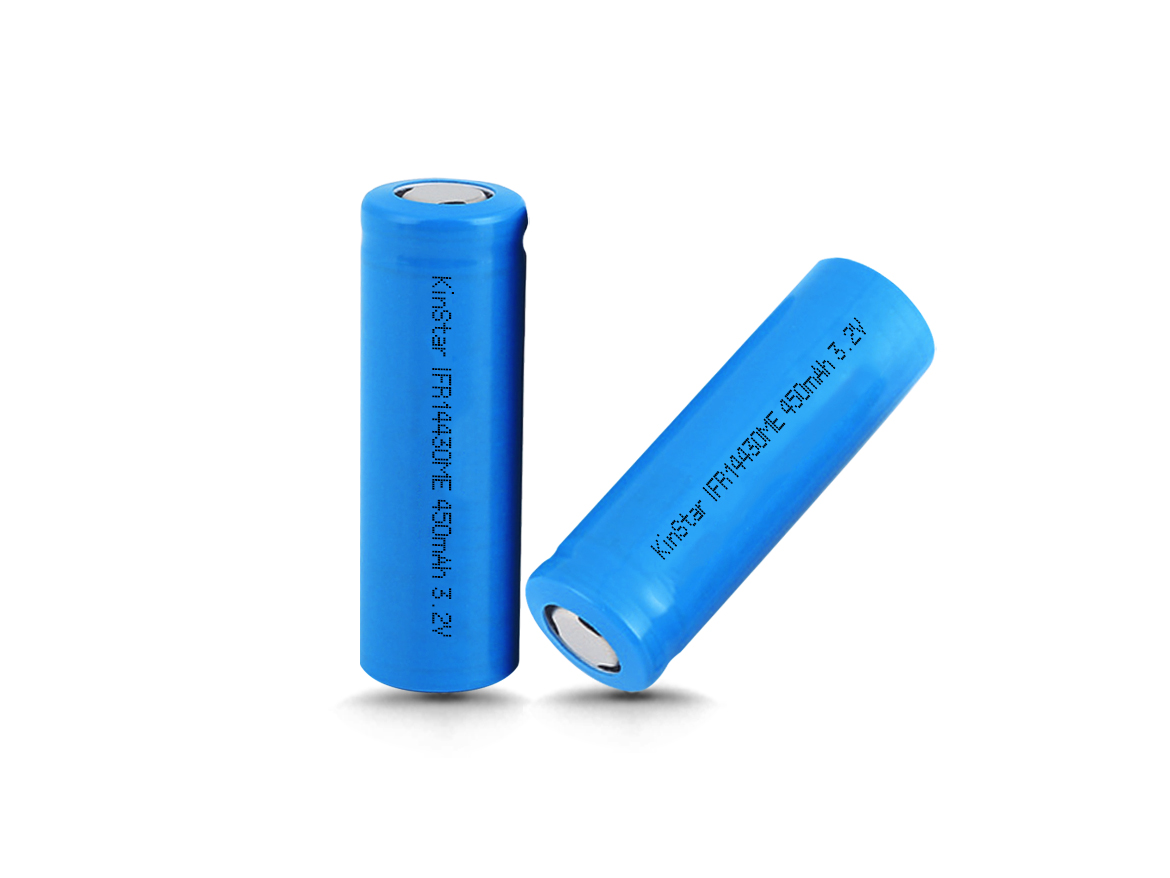

IFR 14430 3.2V 450mAh LiFePO4 Rechargeable Battery

Our battery cells and custom battery solutions are for B2B and intended for mass production. Send us a message and tell us your battery requirements.

IFR 14430 3.2V 450mAh LiFePO4 Rechargeable Battery

IFR 14430 3.2V 450mAh LiFePO4 Rechargeable Battery

  • Cell model IFR14430ME
  • Typical capacity 450mAh
  • Minimum capacity 430mAh
  • Nominal voltage 3.2V
  • Nominal energy 1.44Wh
  • Max. discharge curent 1350mA
  • Dimensions Φ14.4mm丨H 43mm
  • Service life ≥2000 cycles
ItemsSpecificationsNotes
Charge voltage3.2V
Standard charging current90mA
Standard charging time6.0Hours
Rapid charging current225mA
Charging methodCC 丨CVConstant current丨constant voltage
Standard disharging current90mA
Discharge end voltage2.0V
Internal resistance≤100mΩAC impedance 1 kHz
Weight≤16g
Charge temperature0~60°C
Discharge temperature-20~ 60°C
Less than 3 month storage-20 ~ 40°C
Less than 1 year storage-20 ~ 20°C
