The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

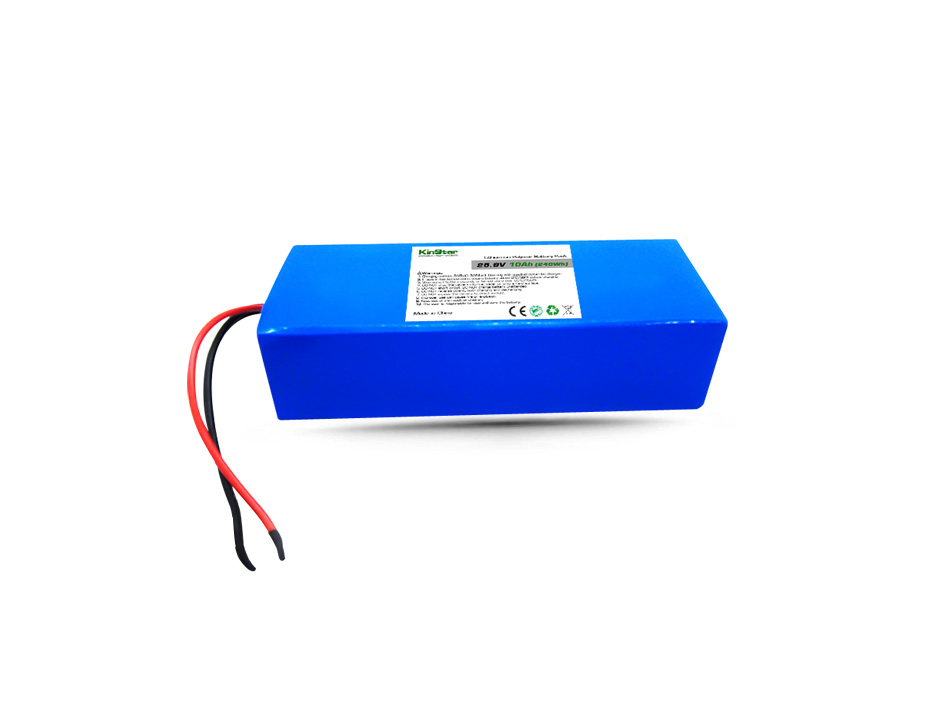

Kinstar LiPo 9759156 7S1P 24V 10Ah Lithium-ion Polymer Battery Pack with BMS for Pedelec bikes

Kinstar LiPo 9759156 7S1P 24V 10Ah Lithium-ion Polymer Battery Pack with BMS for Pedelec bikes

  • Item No. LP9759156SS
  • Nominal capacity 10Ah
  • Nominal voltage 25.9V
  • Cell type Lithium-ion Polymer
  • Cell model 9759156
  • Connector Bare Leads
  • Applications Electronic Devices, Power Devices, Pedelec bikes
ItemsSpecificationsNotes
Nominal capacity10Ah0.2C discharge at 25°C
Nominal voltage25.9VAverage operating voltage
Nominal energy259WhCapacity(Ah) × Voltage(V)
Charging voltage29.40 ± 0.05V
Charging current2A 丨3AStandard丨Rapid
Charging time6.0 hours 丨4.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current2A 丨15AStandard丨Maximum
Peak discharge current40AWithin a short time
Discharge end voltage19.25VDischarge cut-off voltage
Dimensions170mm丨62mm丨70mmLength丨Width丨Height
Typical weight1560g55 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
