5A maximum discharge current

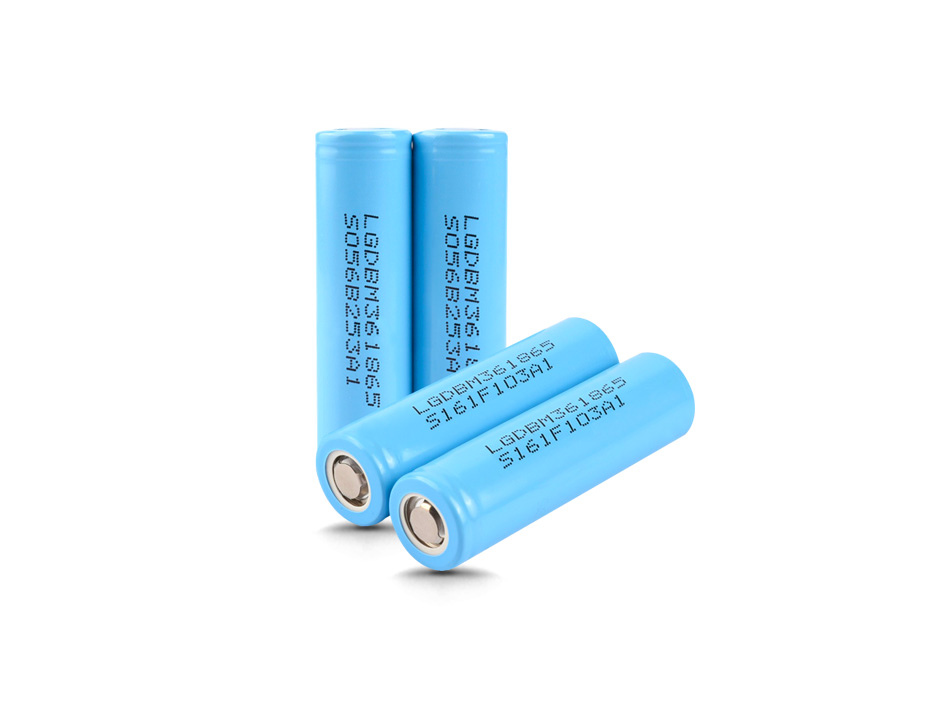

LG INR18650 M36T 3600mAh battery maximum continuous discharge current 5A, widely use on LED flashlight, Toys, Electronics power devices.
High discharge performance
LG INR18650 M36T battery provide powerful and constant power to the device or equipment, the discharge curve is quiet beautiful with high current load.
Fast charge and no memory effect
Maximum continuous charge current 2330mA, can be full charged in about 2.5 hours. LG Li-ion 18650 battery has no memory effect and with minimal self-discharge.
Reliable and safe
LG Chem is the leader of Li-ion 18650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
| Items | Specifications | Notes |
| Nominal capacity | 3450mAh | 0.2C discharge, 2.5V cut-off |
| Nominal voltage | 3.63V | 0.2C discharge |
| Nominal energy | 12.5Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.05V | |
| Charging current | 1000mA 丨2330mA | Standard丨Rapid |
| Charging time | 5.0 hours 丨2.5 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 670mA 丨5000mA | Standard丨Maximum |
| Peak discharge current | 6A | Within a short time |
| Discharge end voltage | 2.5V | Discharge cut-off voltage |
| Dimensions | 18.51mm丨65.6mm | Diameter丨Height |
| Typical weight | 48.2g | 1.70 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
