10A maximum discharge current

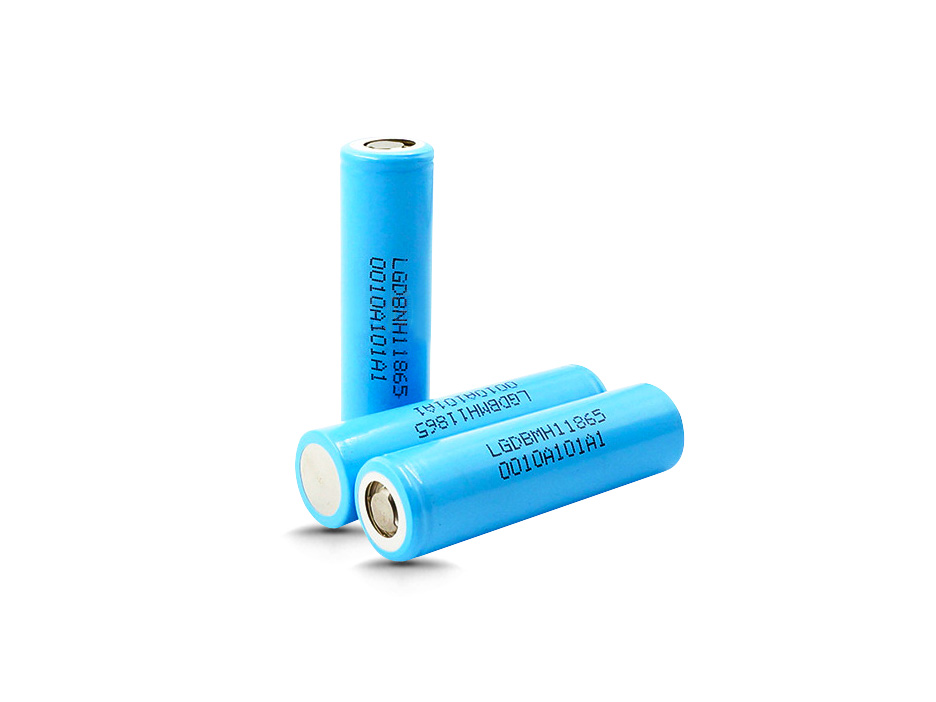

LG INR18650MH1 3200mAh battery maximum discharge current 10A, widely use on eBikes; LED flashlights; Toys Electronics power devices.
High discharge performance
LG INR18650MH1 battery provide powerful and constant power to the device or equipment, the discharge curve is quiet beautiful with high current load.
Fast charge and no memory effect
Maximum continuous charge current 3100mA, can be full charged in about 2.5 hours. LG Li-ion 18650 battery has no memory effect and with minimal self-discharge.
Reliable and safe
LG Chem is the leader of Li-ion 18650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
| Items | Specifications | Notes |
| Nominal capacity | 3200mAh | 0.2C discharge, 2.5V cut-off |
| Nominal voltage | 3.67V | 0.2C discharge |
| Nominal energy | 11.74Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.05V | |
| Charging current | 1550mA 丨3100mA | Standard丨Rapid |
| Charging time | 3.5 hours 丨2.5 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 1550mA 丨6400mA | Standard丨Maximum |
| Peak discharge current | 10A | Within a short time |
| Discharge end voltage | 2.5V | Discharge cut-off voltage |
| Dimensions | 18.39mm丨65.15mm | Diameter丨Height |
| Typical weight | 49g | 1.73 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
