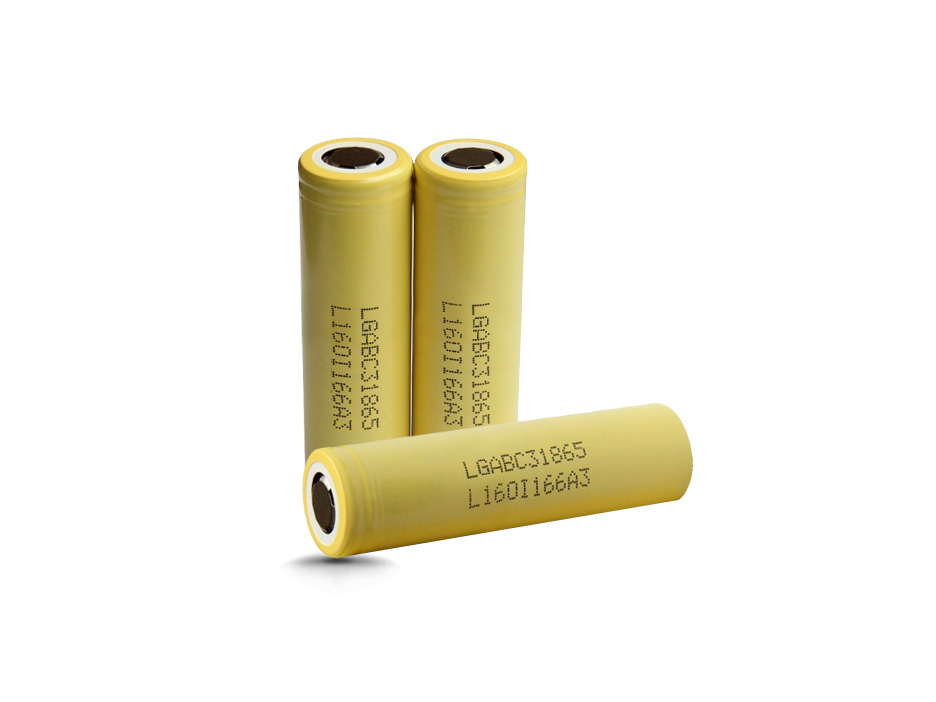

LG C3 18650 2800mAh 5.4A Battery - ICR18650C3

LG ICR18650C3 2800mAh Battery - Nominal voltage 3.72V; Nominal capacity 2800mAh; Maximum continuous discharge current 5.4A; Discharge cut-off voltage 3.0V.

  • lg c3
LG C3 18650 2800mAh 5.4A Battery - ICR18650C3

LG C3 18650 2800mAh 5.4A Battery - ICR18650C3

  • Cell model LG ICR18650C3
  • Typical capacity 2800mAh
  • Minimum capacity 2700mAh
  • Nominal voltage 3.72V
  • Maximum discharge current 5.4A
  • Cell specification Datasheet download
  • Applications LED flashlights; Toys Electronics power devices
ItemsSpecificationsNotes
Nominal capacity2800mAh0.2C discharge, 3.0V cut-off
Nominal voltage3.72V0.2C discharge
Nominal energy10.42WhCapacity(Ah) × Voltage(V)
Charging voltage4.30 ± 0.05V
Charging current1350mA 丨2700mAStandard丨Rapid
Charging time3.5 hours 丨2.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current540mA 丨5400mAStandard丨Maximum
Peak discharge current6AWithin a short time
Discharge end voltage3.0VDischarge cut-off voltage
Dimensions18.29mm丨65mmDiameter丨Height
Typical weight50g1.76 oz
Charge temperature range+0 ~ +60°C+50 ~ 110°F
Discharge temperature range-10 ~ +45°C-4 ~ +140°F
Storage temperature-10 ~ +45°CWithin 3 months
