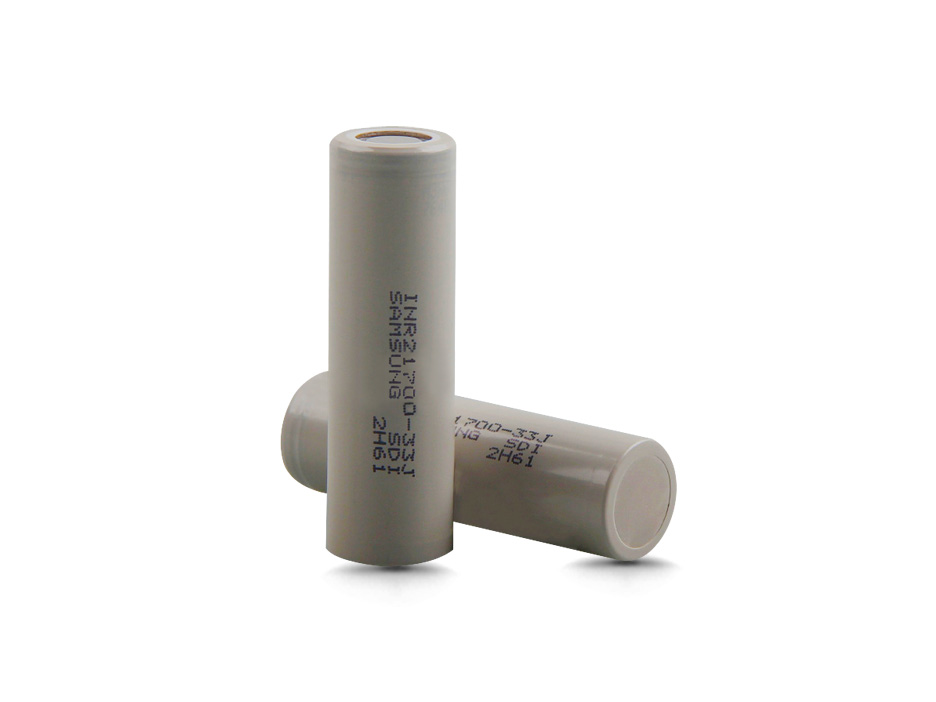

Samsung 33J 21700 3270mAh 6.4A Battery

Samsung INR21700 33J 3270mAh Battery - Nominal voltage 3.56V; Nominal capacity 3270mAh; Maximum discharge current 6.4A; Discharge cut-off voltage 3.0V.

  • samsung 33j
Samsung 33J 21700 3270mAh 6.4A Battery - Grade A

Samsung 33J 21700 3270mAh 6.4A Battery - Grade A

  • Cell model Samsung INR21700-33J
  • Typical capacity 3270mAh
  • Minimum capacity 3200mAh
  • Nominal voltage 3.56V
  • Max. continuous discharge current 6.4A
  • Cell specification Datasheet Download
  • Applications E-bikes, Electirc scooters, LED flashlight
Nominal capacity3270mAh0.2C discharge, 3.0V cut-off
Nominal voltage3.56V0.654A discharge at 25°C
Nominal energy11.64WhCapacity(Ah) × Voltage(V)
Charging voltage4.10V
Charging current654mA 丨1500mAStandard丨Rapid
Charging time6.0 hours 丨3.0 hoursStandard丨Rapid
Charging methodCP - CVConstant current, constant voltage
Continuous discharge current654mA 丨6.4AStandard丨Maximum
Peak discharge current8AWithin a short time
Discharge end voltage3.0VDischarge cut-off voltage
Typical weight62g2.19 oz
Charge temperature range+0 ~ +60°C+50 ~ 110°F
Discharge temperature range-10 ~ +45°C-4 ~ +140°F
Storage temperature-10 ~ +45°CWithin 3 months
