Cost-effective and high quality

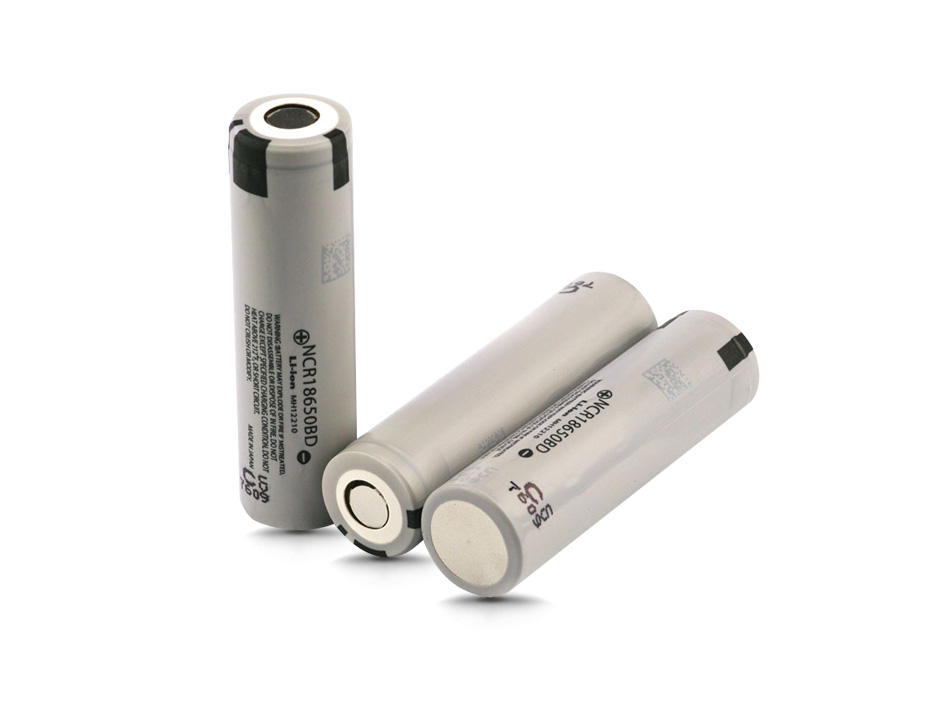

NCR18650BD is a cost-effective cell model released by Panasonic, capacity 3180mAh a little lower than NCR18650GA and NCR18650B, but price much better and also high quality.
10A continuous discharge current
Compare to Samsung INR18650-32E and LG ICR18650MH1, Panasonic NCR18650BD is the only 3200mAh 18650 cell which stated 10A is the maximum discharge current for continuous.
Applications widely
NCR18650BD 3180mAh cells can be widely use to all products desire high capacity for longest running time. For example, LED flashlight, electric bike and scooter batteries.
Reliable and safe
Panasonic and Sanyo are world famous brand, also the leader of Li-ion 18650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
| Items | Specifications | Notes |
| Nominal capacity | 3180mAh | Reference only |
| Nominal voltage | 3.6V | 0.61A discharge at 25°C |
| Nominal energy | 11.45Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.03V | |
| Charging current | 900mA 丨1540mA | Standard丨Rapid |
| Charging time | 8.0 hours 丨4.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 610mA 丨10A | Standard丨Maximum |
| Peak discharge current | 20A | Within a short time |
| Discharge end voltage | 2.5V | Discharge cut-off voltage |
| Dimensions | 18.5mm丨65.3mm | Diameter丨Height |
| Typical weight | 48g | 1.70 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
