High discharge current

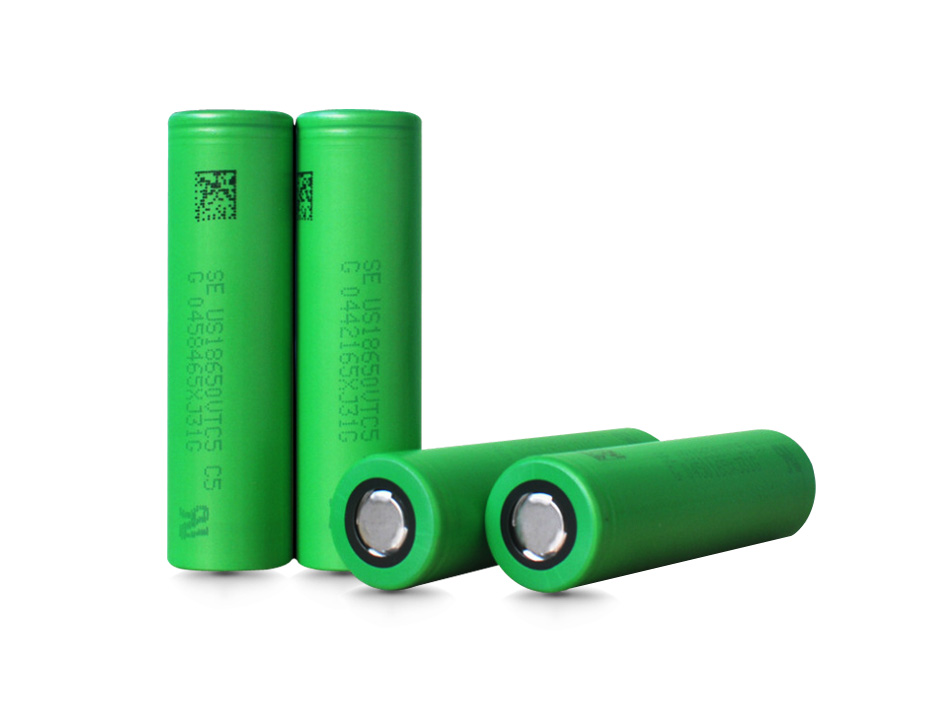

Sony VTC5 18650 2600mAh battery maximum continuous discharge current 30A, with 80 deg temperature cut, 20A continuous discharge without 80 deg temperature cut.
High discharge performance
Sony 18650 battery provide powerful and constant power to the device or equipment, voltage drop less than Samsung 25Q and LG HE2 with high current load.
Fast charge and no memory effect
Maximum continuous charge current 4A, can be full charged in about 1.5 hours. Sony Li-ion 18650 battery has no memory effect and with minimal self-discharge.
Reliable and safe
Sony is the inventor and leader of Li-ion 18650 battery, provide only reliable batteries, it is 100% safe by using the battery according to the cell specification.
| Items | Specifications | Notes |
| Nominal capacity | 2600mAh | 0.2C discharge, 2.0V cut |
| Nominal voltage | 3.6V | |
| Nominal energy | 9.36Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20V | |
| Charging current | 1A 丨4A | Standard丨Rapid |
| Charging time | 3.5 hours 丨1.5 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 10A 丨20A | Standard丨Maximum |
| Peak discharge current | 40A | Within a short time |
| Discharge end voltage | 2.5V | Discharge cut-off voltage |
| Dimensions | 18.35mm丨65mm | Diameter丨Height |
| Typical weight | 46.6g | 1.64 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
